Variflow Dosing Metering Diaphragm Pumps - GDV Series

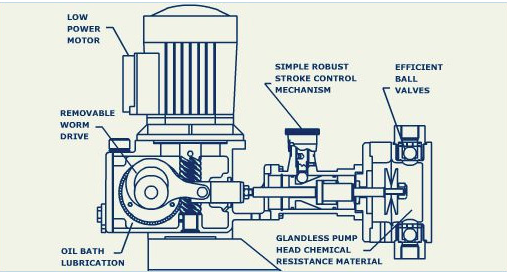

The Variflow Dosing Metering Diaphragm Pumps - GDV Series is from 0 - 600 LPH giving a maximum pressure of 10 Bar depending upon the flow rate. These pumps are provided with high efficiency ball valves & high grade of engineering materials for the wetted parts, which enables wide range of aggressive, toxic, hazardous liquid to be handled in the absence of any gland ,which offers zero leakage.
Technical Details
| CAPACITY | 600 L/Hr (Max) |
| PRESSURE | 10 Bar (Max) |
| PUMP HEAD |
SS304 / SS316 / SS316L / PP / PTFE or any other as per required |
| PORT CONNECTION |
BSP (F) Standard (other options on request) |
| MOTOR TYPE |
Standard / Flame Proof / VFD Compatible / Energy Efficient (other options on request) |
| MOTOR POWER |
0.5 – 1 HP, RPM 1450 Single Phase / Three Phase, 50 Hz / 60 Hz 230 V / 380 V / 415 V (other options on request) |
| APPLICATIONS | Dosing / Metering / Injection / Mixing / Treatment / Feeding / Transfer / Sampling |
PRODUCT CHART - GDV SERIES
| PUMP MODEL | MAX CAPACITY (LPH) | MAX PR. (KG/CM²) | SPEED (SPM) | END CONNECTION | MOTOR (HP) |
|---|---|---|---|---|---|
| GDV # 64-8 | 0 - 70 | 10 | 60 | 1/2” BSP | 0.50 |
| GDV # 96-8 | 0 - 150 | 6 | 60 | 1/2” BSP | 0.50 |
| GDV # 96-16 | 0 - 300 | 6 | 60 | 3/4” BSP | 0.50 |
| GDV # 112-16 | 0 - 600 | 3 | 60 | 3/4” BSP | 0.50 |
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
