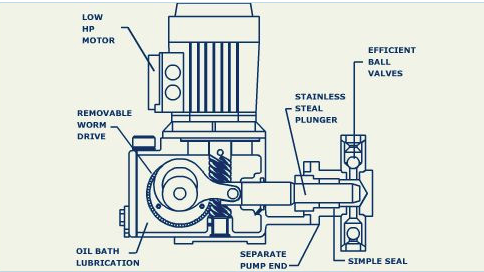

Fixflow Dosing Metering Plunger Pumps - GF Series
The Fixflow Dosing Metering Plunger Pumps - GF Series is from 4.5 - 318 LPH giving a maximum
pressure of 70 Bar depending upon the flow rate. These pumps are provided with
high efficiency ball valves & high grade of engineering materials for the wetted parts, which
enables wide range of aggressive, toxic, hazardous liquid to be handled in the
absence of any gland ,which offers zero leakage.
The pump head are Manufactured from Stainless Steel Material.
Technical Details
| CAPACITY | MAX - 318 LPH |
| PRESSURE | MAX - 70 BAR |
| MOC |
SS 304 / SS 316 / SS 316 L or any other as per required. |
| MOTOR POWER | 0.5 HP, RPM : 1450 |
| MOTOR TYPE |
STANDARD / FLAME PROOF / VFD COMPATIBLE / ENERGY EFFICIENT or any other as per required. |
| POWER SUPPLY |
SINGLE PHASE / THREE PHASE, 50 HZ / 60 HZ 230 V / 380 V / 415 V or any other as per required. |
| APPLICATION | DOSING / METERING / INJECTION / MIXING / FEEDING / SAMPLING |
PRODUCT CHART - GF SERIES
| PUMP MODEL | WORKING CAPACITY (LPH) | WORKING PR. (KG/CM²) | SPEED (SPM) | END CONNECTION | MOTOR (HP) |
|---|---|---|---|---|---|
| GF # 5 - 5 | 4.5 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 6 - 5 | 5.5 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 5 - 8 | 6.75 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 6 - 8 | 11.5 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 5 - 16 | 16 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 6 - 16 | 23 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 8 - 16 | 43 | 70 | 240 | 1/4" BSP | 0.50 |
| GF # 10 - 16 | 64 | 48 | 240 | 1/4" BSP | 0.50 |
| GF # 12 - 16 | 91 | 39 | 240 | 1/2" BSP | 0.50 |
| GF # 14 - 16 | 127 | 30 | 240 | 1/2" BSP | 0.50 |
| GF # 16 - 16 | 164 | 21 | 240 | 1/2" BSP | 0.50 |
| GF # 18 - 16 | 218 | 15 | 240 | 1/2" BSP | 0.50 |
| GF # 20 - 16 | 272 | 12 | 240 | 1/2" BSP | 0.50 |
| GF # 22 - 16 | 318 | 8 | 240 | 1/2" BSP | 0.50 |
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
