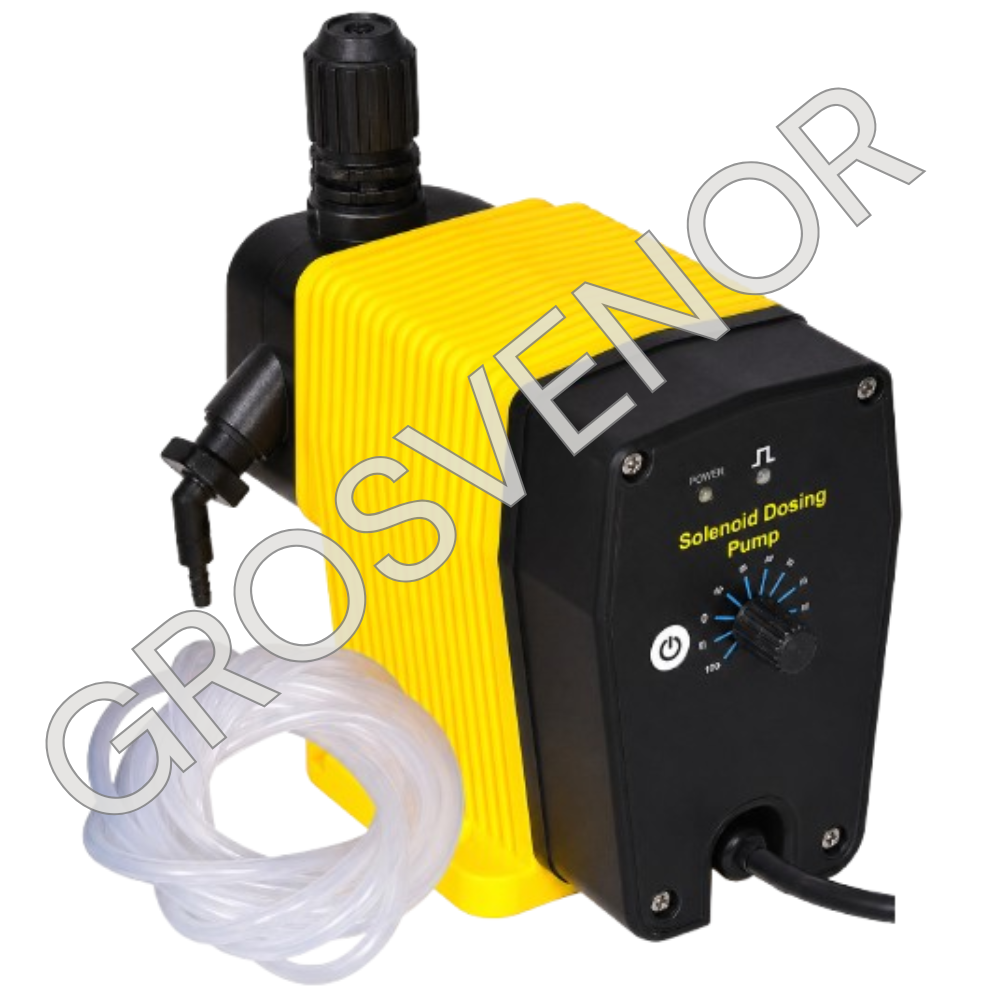

Electronic Dosing Pump
It is a positive displacement diaphragm dosing pump operating at 230V, 50 Hz supply. Solenoid pushes the diaphragm which in turns pushes the liquid into the system. Solenoid is actuated by a solid state electronic circuit.
Technical Specifications
| Power Supply | 230 V AC, 50 Hz |
| Pump Stroke Per Minute | 380 Maximum (Adjustable) |
| Negative Suction | 1 Meter Maximum |
| Dosing Rate @ 4 kg/cm² | 6 LPH |
| Dosing Rate @ 6 kg/cm² | 6 LPH |
| Suction/Discharge Tubing | 4/6 mm |
| Power Consumption at 380 SPM | 30 Watts |
Advance Features
- ✔ Level Switch Interlock Arrangement
- ✔ User Friendly knob linked with back cover for adjusting dosing frequency
- ✔ Easy to operate
- ✔ Solid PTFE diaphragm for longer life
- ✔ Inbuilt Air Relief Valve
- ✔ Double ball NRV
- ✔ Less Noise
- ✔ Minimum SPM
Standard Features
- ✔ Easy to operate
- ✔ Solid PTFE diaphragm for longer life
- ✔ Inbuilt Air Relief Valve
- ✔ Double ball NRV
- ✔ Less Noise
- ✔ Minimum SPM
Material of Construction of Wetted Parts
PP, PTFE, PVDF
Scope of Supply

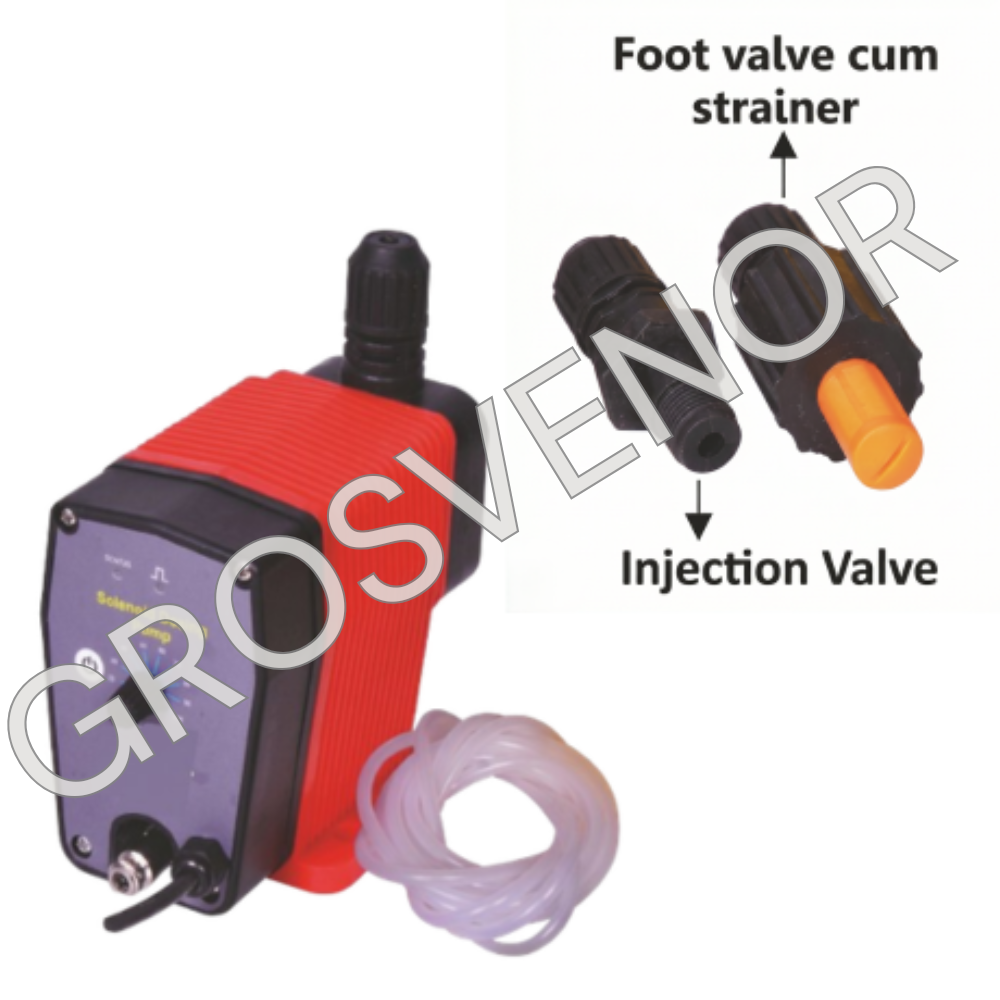

Dosing pump, Suction/Discharge tubing 3 Mtr, Strainer cum Foot valve, Injection valve, O&M Manual, Mounting bolts, Level switch (Optional)
Industries We Serve
Pharmaceutical
RO Plant
Oil & Gas
Food & Beverages
Petro Chemical
Paper Industries
*** Our policy is to continually develop and improve our products and we therefore reserve the right to modify products without any notice.***
